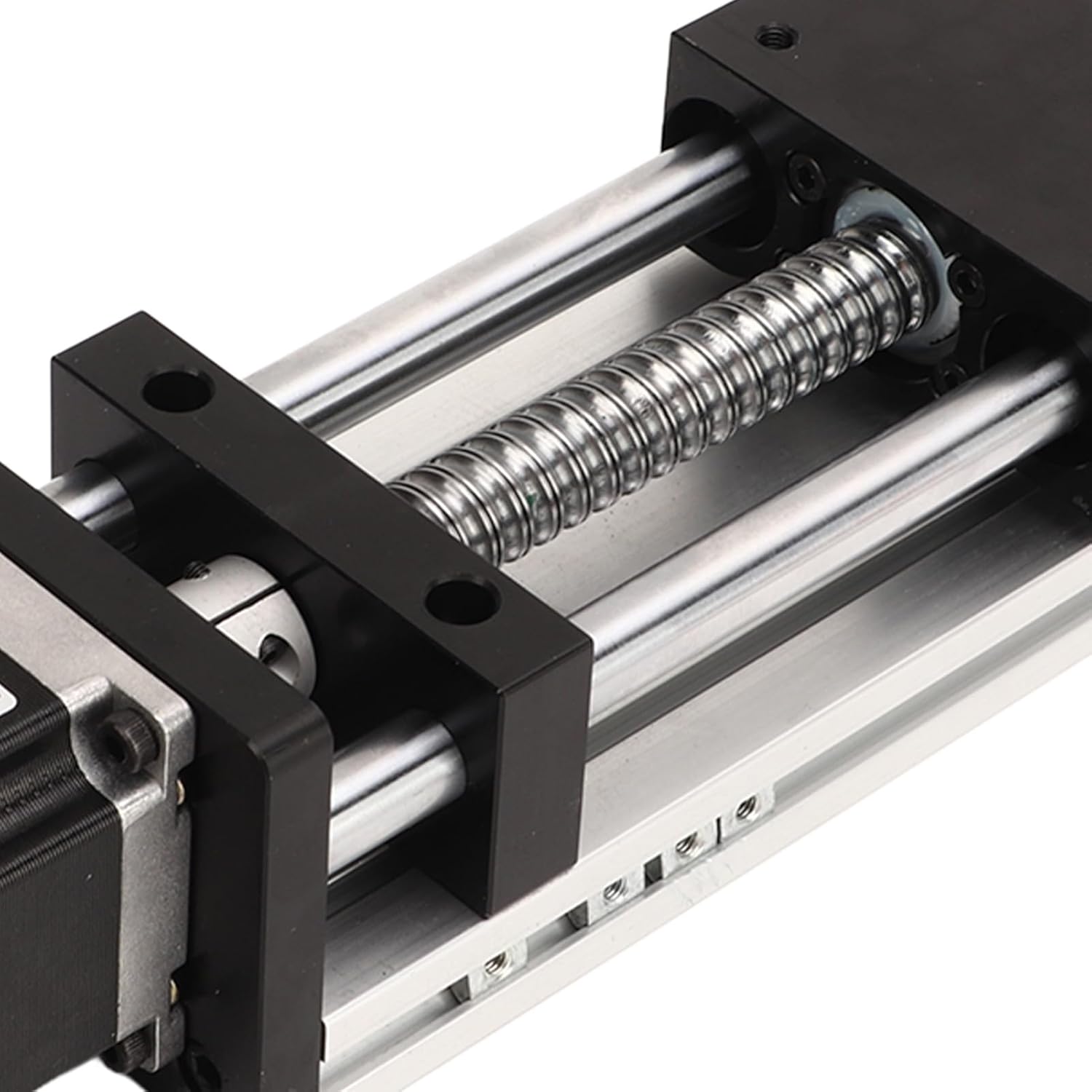

Linear Stage Actuator Slide Stage Rail Table Enhances Axis Linear Motion Guide Actuators Dual Nuts for Efficiency Boost

1. TECHNICAL PARAMETERS: Linear stage actuator is made of aluminum alloy with effective stroke of 200mm, maximum horizontal load capacity of 30kg and maximum vertical load of 20kg2. STANDARD M5 MOUNTING HOLES: M5 movable nuts on the sides and bottom make the installation of the sliding table more flexible3. AND ACCURATE: Linear slide stage is high speed tilt, support operation. 1605 screw, possess high accuracy up to 0.03mm4. APPLICABLE SCENARIO: This slide stage is widely used in industrial machine tools, such as milling machines, lathes, grinding machines and so on5. APPLICABLE MODEL: This sliding table can be used with type, T type, I type, gantry type, double axes, three axes, four axesSpec:Item Type: Linear Stage ActuatorMaximum Load: Horizontal: 30KG; Vertical: 20KGHighest Accuracy: Positioning Accuracy: 0.03mmWidth: Approx. 80mm / 3.15inMaximum Stroke: Approx. 200mm / 7.87inScrew Diameter: Approx. 16mm / 0.63in(1605)Main Function: Convert rotational motion into linear motion, or convert torsion into axial repeated forceUse With: type, T type, I type, gantry type, double axes, three axes, four axesHow to Use:Install and use directly.packing list:1 x Slide Table

• Applicable Model: This sliding table can be used with type, type, type, gantry type, double axes, three axes, four axes
• Applicable Scenario: This slide stage is widely used in industrial machine tools, such as milling machines, lathes, grinding machines and so on
• for m5 Mounting Holes: for m5 movable nuts on the sides and make the installation of the sliding table
• Linear Actuator,: Provides linear control, suitable for various machines to meet your various mechanical stroke needs.
• Glossy And Accurate: Linear slide stage is high for speed tilt, support Gmooth operation. 1605 ballscrew, possess high accuracy up to 0.03mm
